Subdomain Federation

Microsoft federates authentication by domain, not by user. Once a domain is federated, every user in that domain (that is, every user whose UPN suffix matches the domain) is redirected to BlokSec to sign in. This all-or-nothing behavior is a Microsoft limitation, not something BlokSec can control. To test BlokSec with a subset of users first, you can federate a separate subdomain and move only your test users onto it, leaving everyone else on the root domain untouched.

These instructions walk through the process of adding a new subdomain to Microsoft Entra that can be used to test BlokSec authentication with a subset of users before rolling it out more broadly. For these instructions, we will use the fictitious company “Luvion” whose primary domain is luvion.link. We will add the subdomain test.luvion.link for this test. In your own tenant you can use any subdomain you like for testing purposes.

Prerequisites

Section titled “Prerequisites”
  • Domain Name Administrator (or Global Administrator) access to your Microsoft Entra ID tenant. Domain Name Administrator is the least-privileged role that can add and manage domains.
  • The root domain (luvion.link in this example) already added and verified in the same tenant.

Add the subdomain

Section titled “Add the subdomain”
  1. Sign in to the Microsoft Entra admin center.
  2. Navigate to Domain names in the left-hand menu.

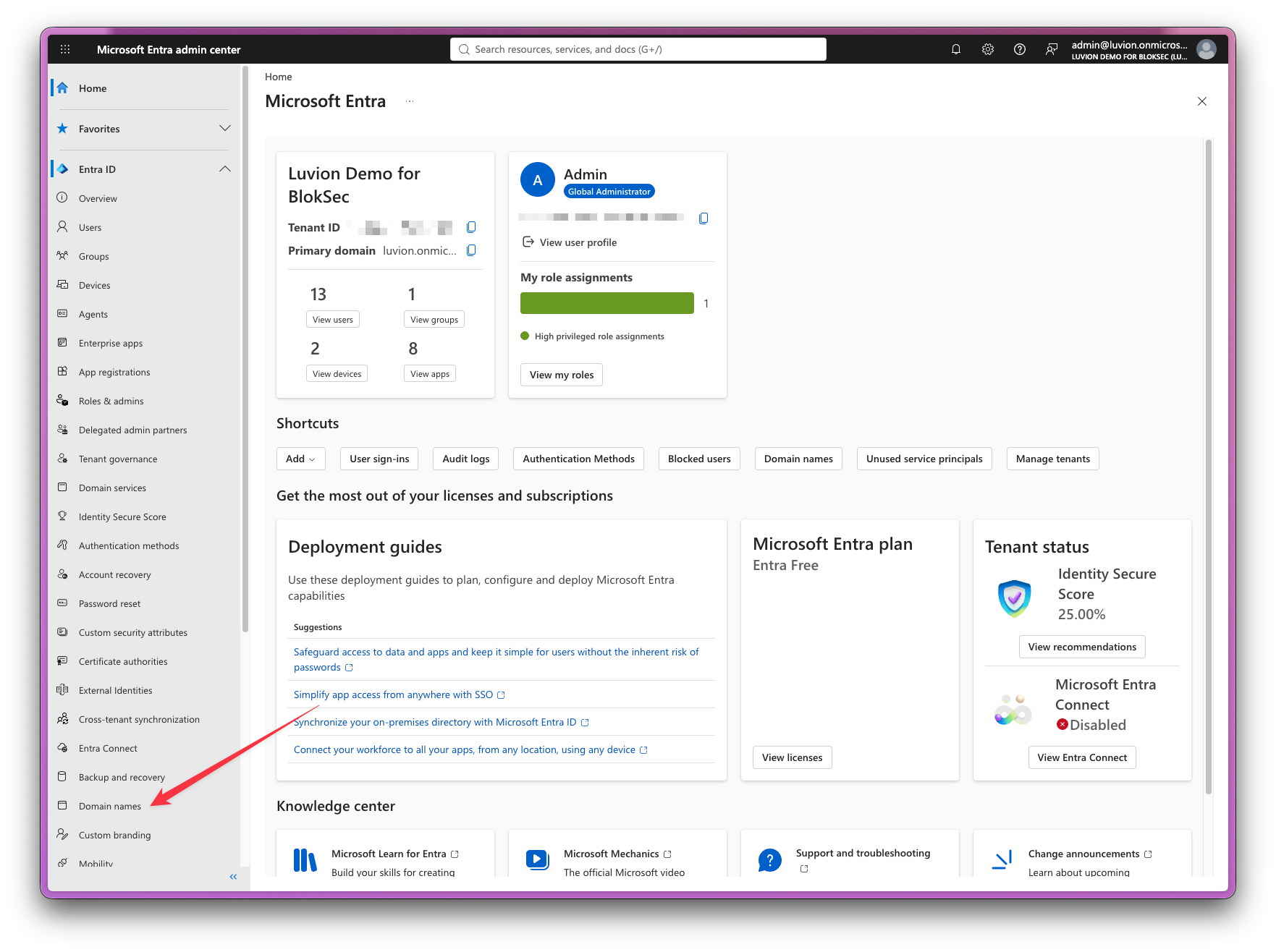

Microsoft Entra admin center home page with Domain names in the left-hand menu and the Add custom domain button
Open Domain names and click Add custom domain
  1. Click Add custom domain (1).
  2. Enter a value for the custom domain (2). For this example, we will enter test.luvion.link. Click Add domain (3).

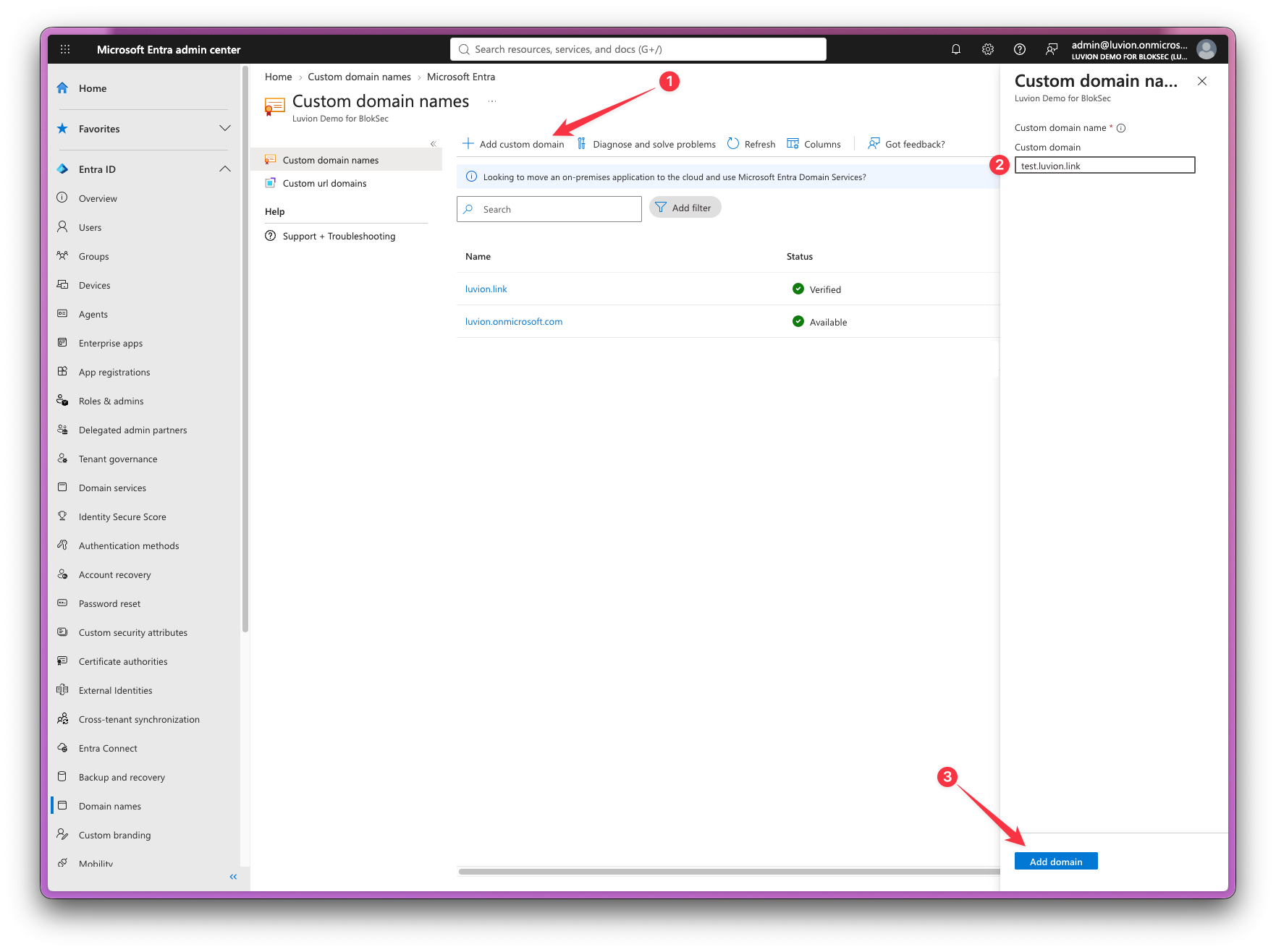

Add custom domain panel with test.luvion.link entered in the Custom domain name field
Enter the test subdomain and click Add domain
  1. Upon successful creation, the Entra admin center shows a confirmation.

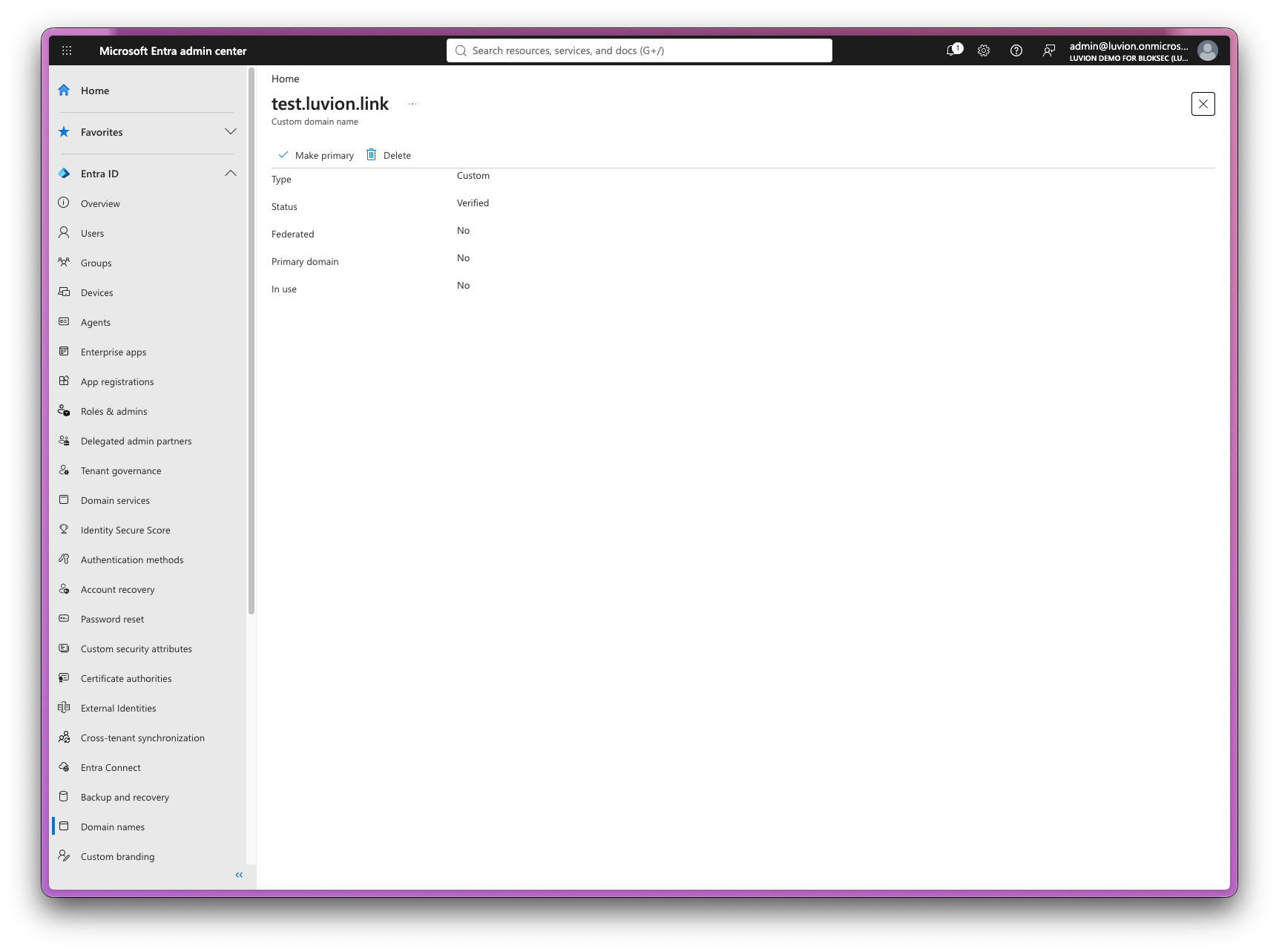

Microsoft Entra admin center confirmation that test.luvion.link was added
Entra confirms the subdomain was added

Promote the subdomain to a root domain

Section titled “Promote the subdomain to a root domain”

A new subdomain inherits its authentication settings from its root domain, so Microsoft won’t let you federate it on its own. If you try, the BlokSec federation wizard fails with Subdomain cannot be federated.

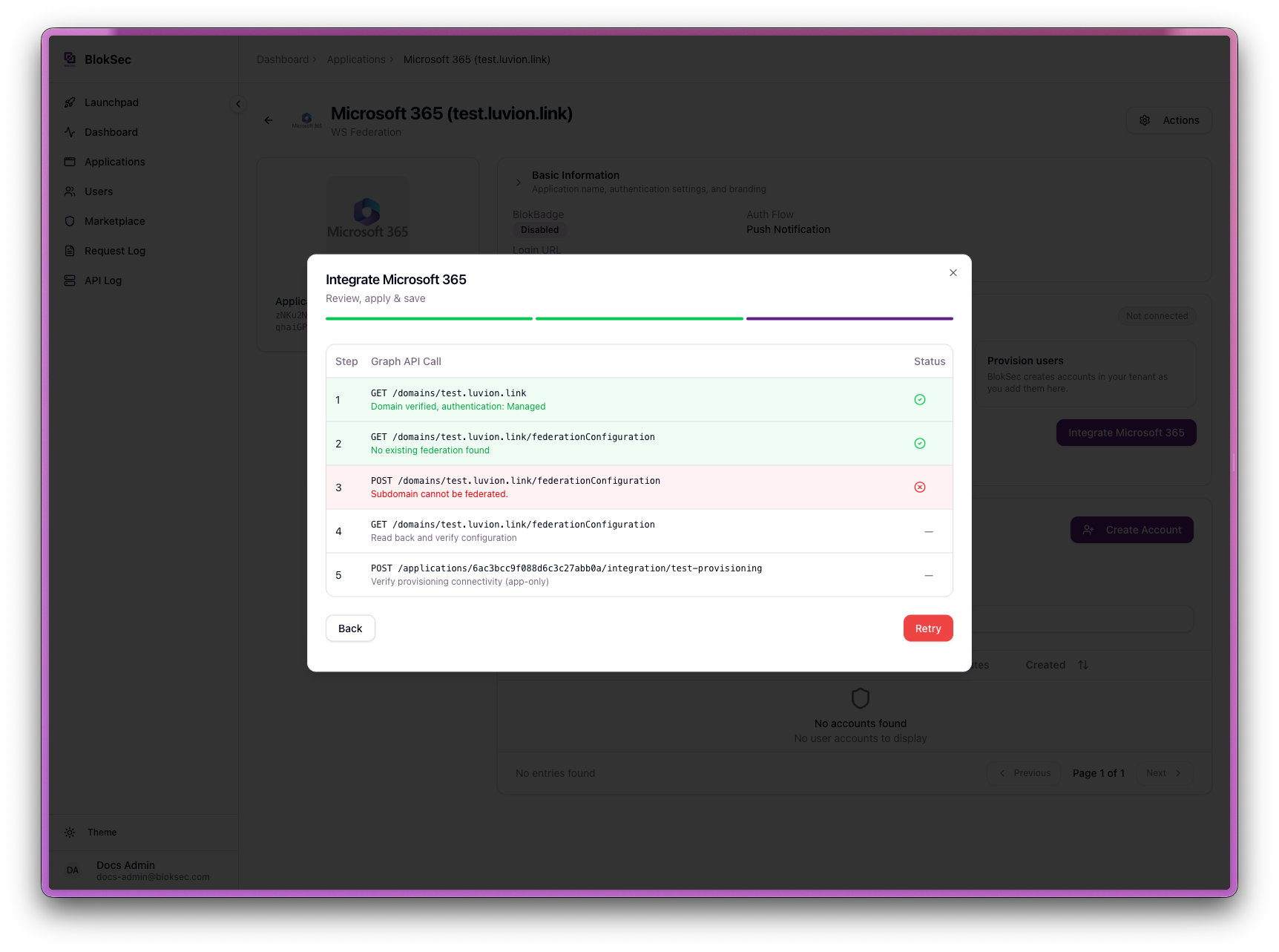

BlokSec federation wizard showing the error Subdomain cannot be federated for test.luvion.link
Federating a subdomain before promoting it fails

To fix this, promote the subdomain to a root domain. This only changes how Entra treats test.luvion.link. It doesn’t make it your primary domain, and it doesn’t affect luvion.link or its users.

The Entra admin center doesn’t have an option for this, so it’s done with a Microsoft Graph call. You can use Graph Explorer or PowerShell, signed in with the same administrator account. The call needs the Domain.ReadWrite.All permission.

Graph Explorer: sign in, then send a POST request with an empty body to:

https://graph.microsoft.com/v1.0/domains/test.luvion.link/promote

PowerShell:

Terminal window
Connect-MgGraph -Scopes "Domain.ReadWrite.All"
Invoke-MgGraphRequest -Method POST -Uri "https://graph.microsoft.com/v1.0/domains/test.luvion.link/promote"

A successful call returns { "value": true }.

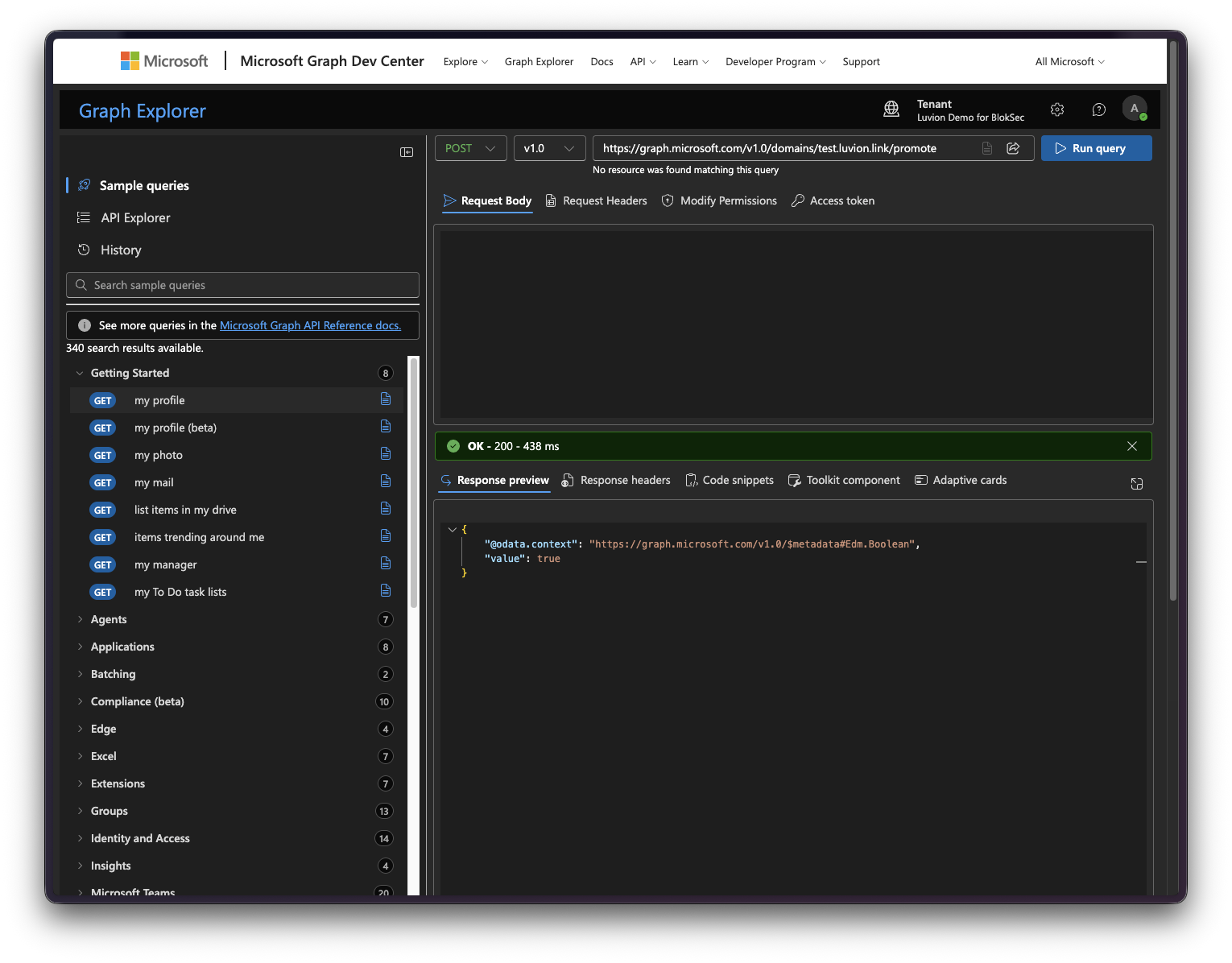

Graph Explorer showing a successful promote request for test.luvion.link with the response value true
A successful promote returns value: true

Federate the subdomain with BlokSec

Section titled “Federate the subdomain with BlokSec”

Follow the Federation guide, and choose test.luvion.link when the wizard asks you to select your domain. Only users whose UPN is on test.luvion.link will sign in with BlokSec. Everyone on luvion.link keeps signing in the way they do today.

Move test users to the subdomain

Section titled “Move test users to the subdomain”

To have an existing user sign in with BlokSec, change the domain in their User Principal Name (UPN) to the federated subdomain. Repeat these steps for each user you want to include in the test.

  1. In the Microsoft Entra admin center, go to Users > All users and open the user you want to move.
  2. On the user’s Properties tab, click Edit properties.

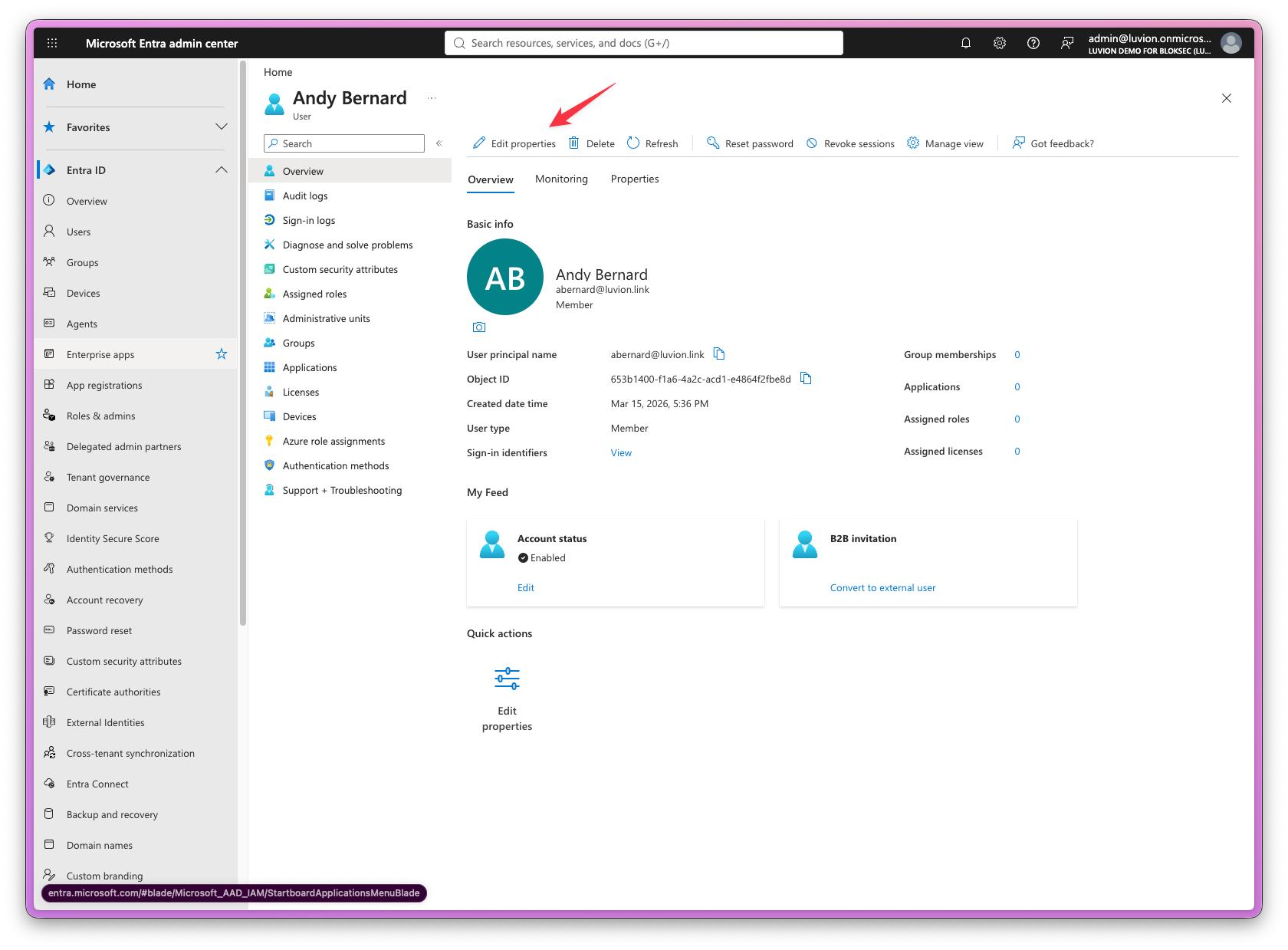

Microsoft Entra user properties screen with an arrow pointing at the Edit properties button
Open the user's properties and click Edit properties
  1. In the User principal name field, open the domain drop-down and select test.luvion.link. Click Save.

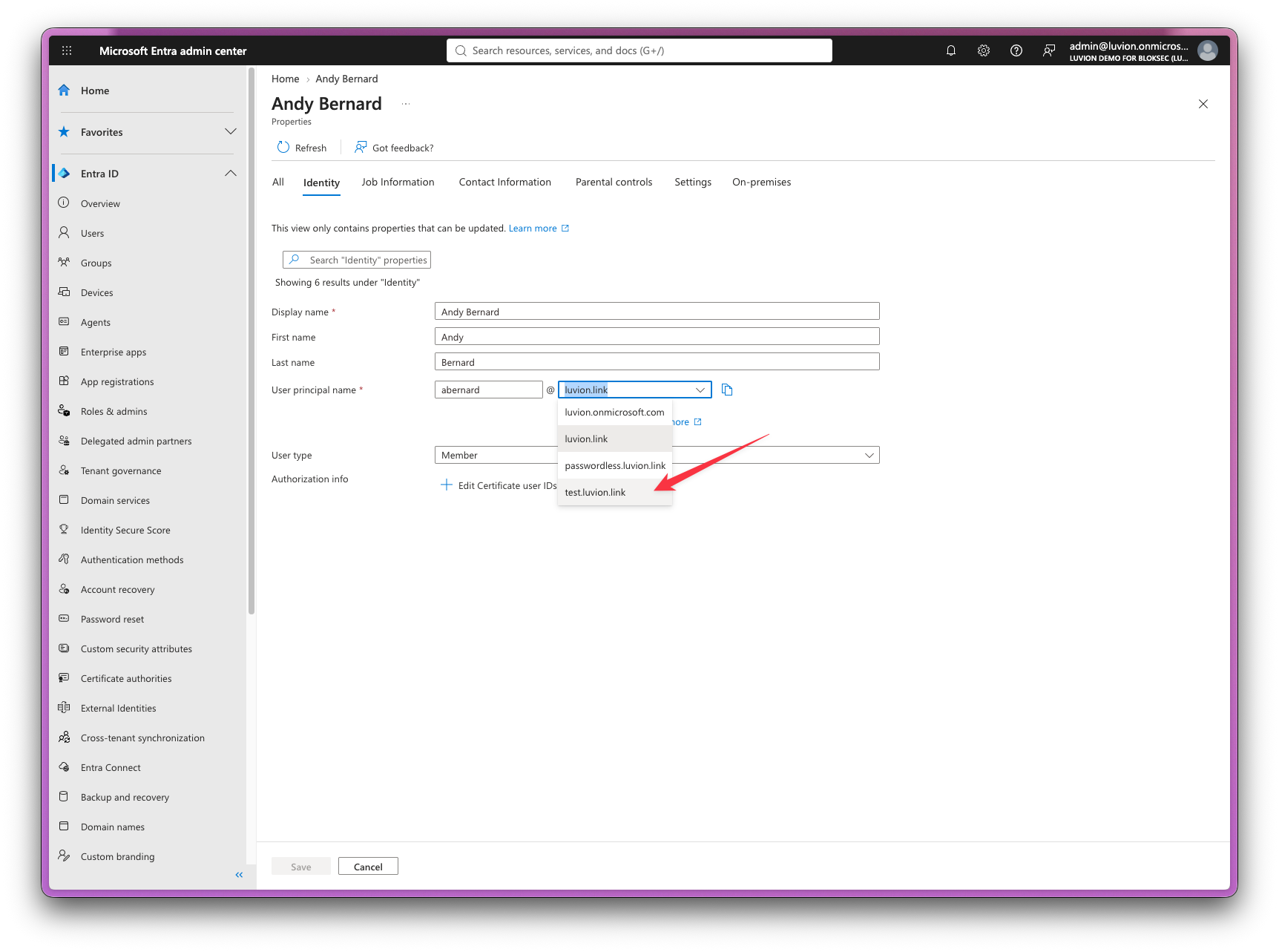

Edit properties screen with the User principal name domain drop-down open and test.luvion.link listed
Change the UPN domain to the federated subdomain

Test sign-in

Section titled “Test sign-in”

Once a test user has a matching BlokSec account, check that they’re sent to BlokSec:

  1. Open a private/incognito browser window
  2. Go to https://m365.cloud.microsoft and click Sign in
  3. Enter the test user’s full UPN (e.g., jane@test.luvion.link)
  4. You should be redirected to BlokSec’s sign-in page. After approving the sign-in, you’re returned to Microsoft 365 signed in.
